Overview

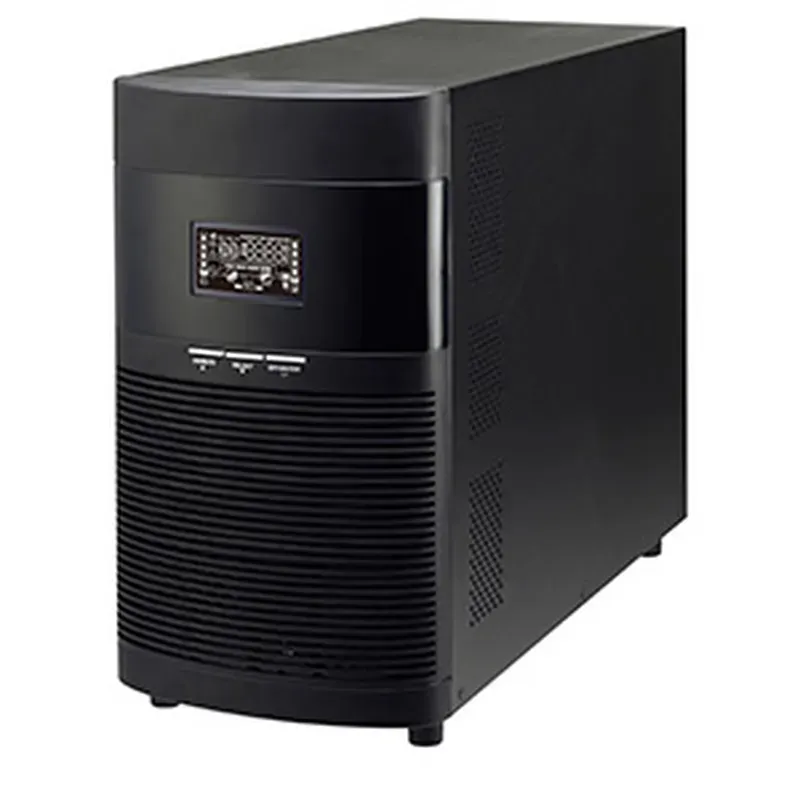

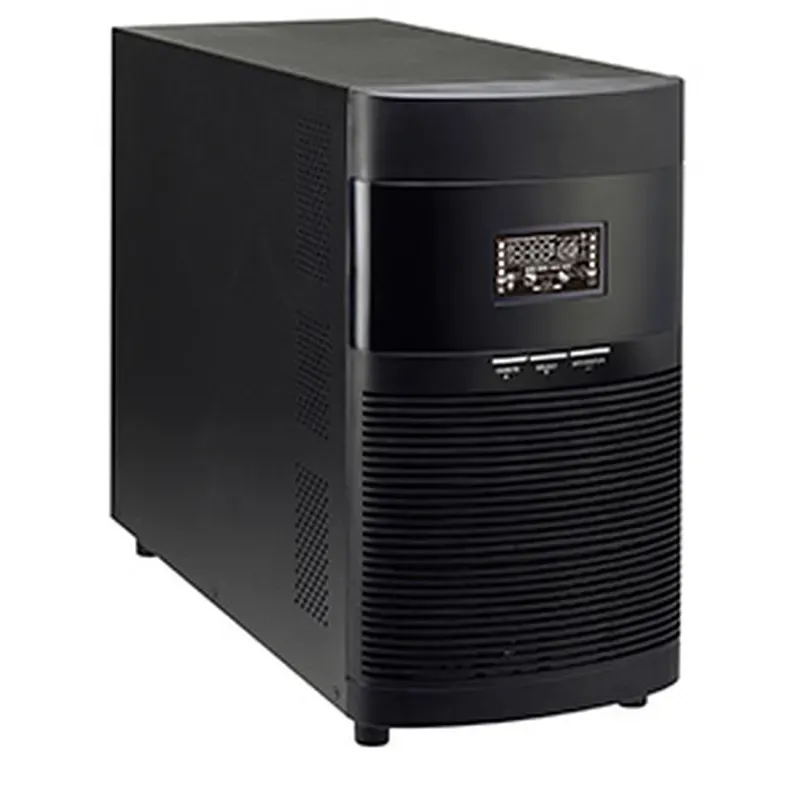

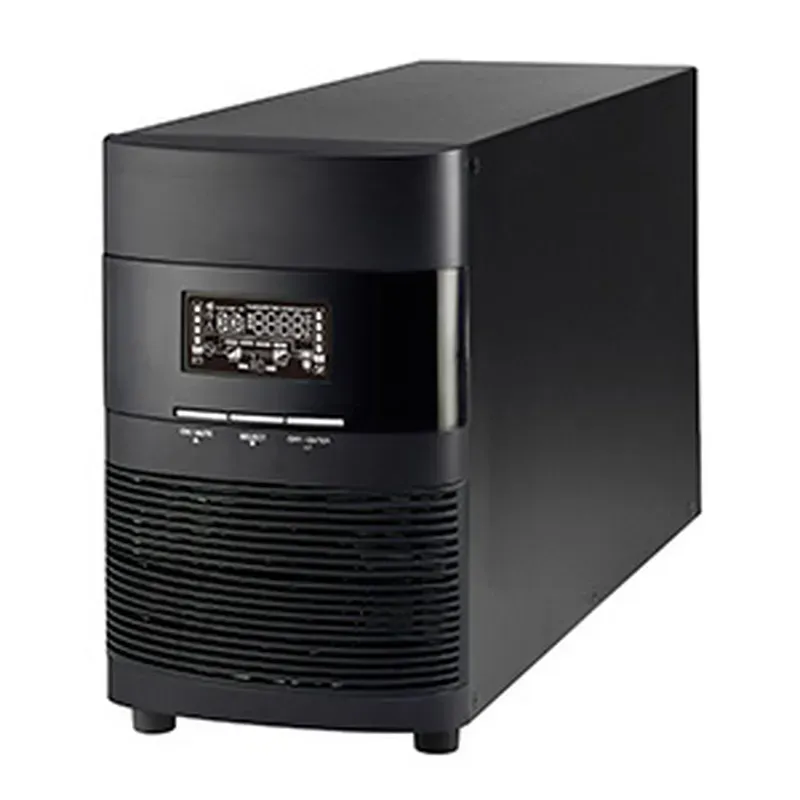

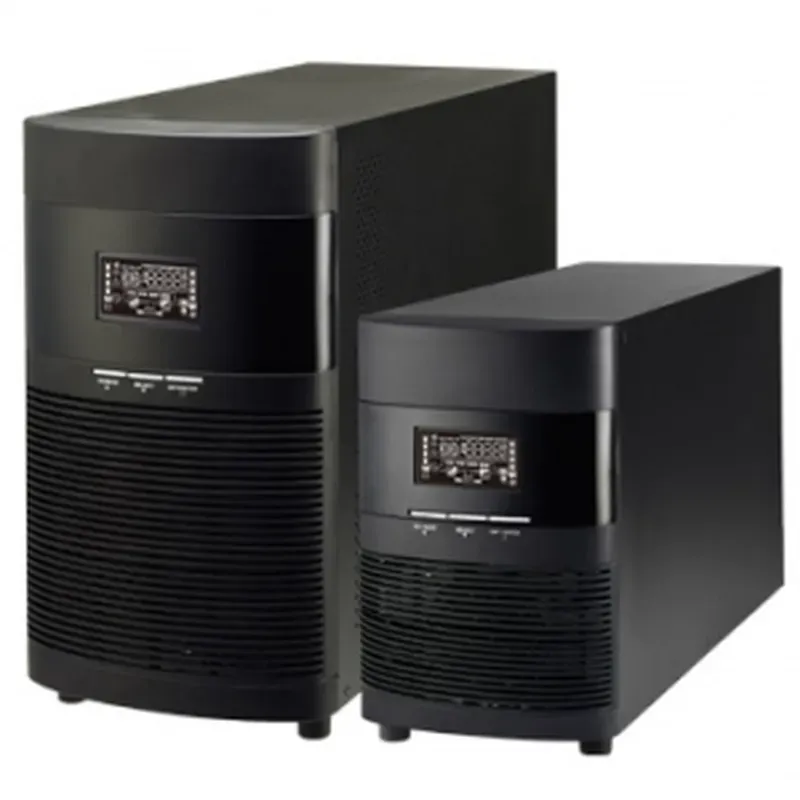

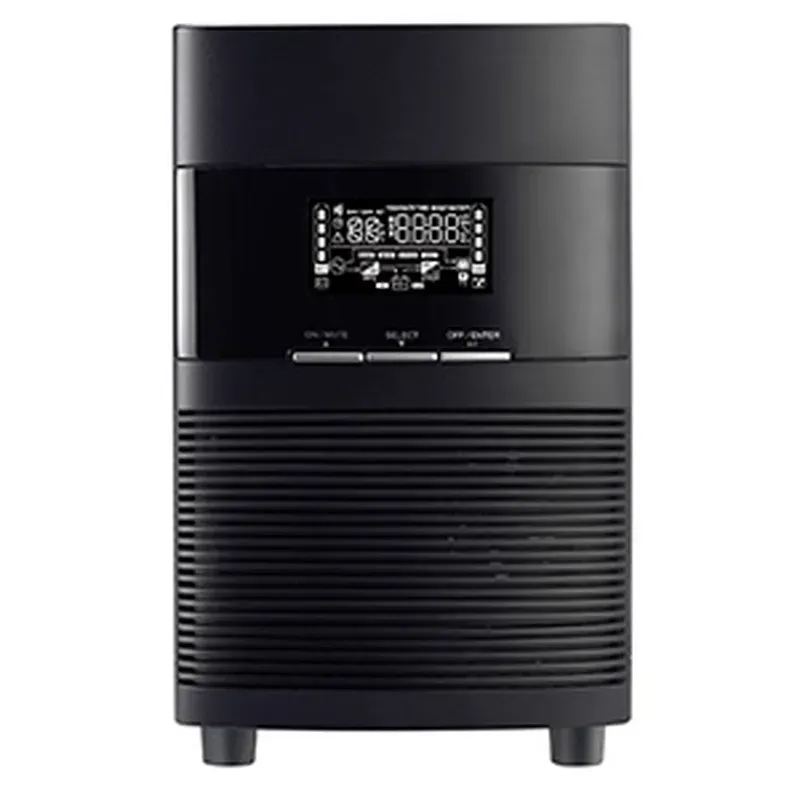

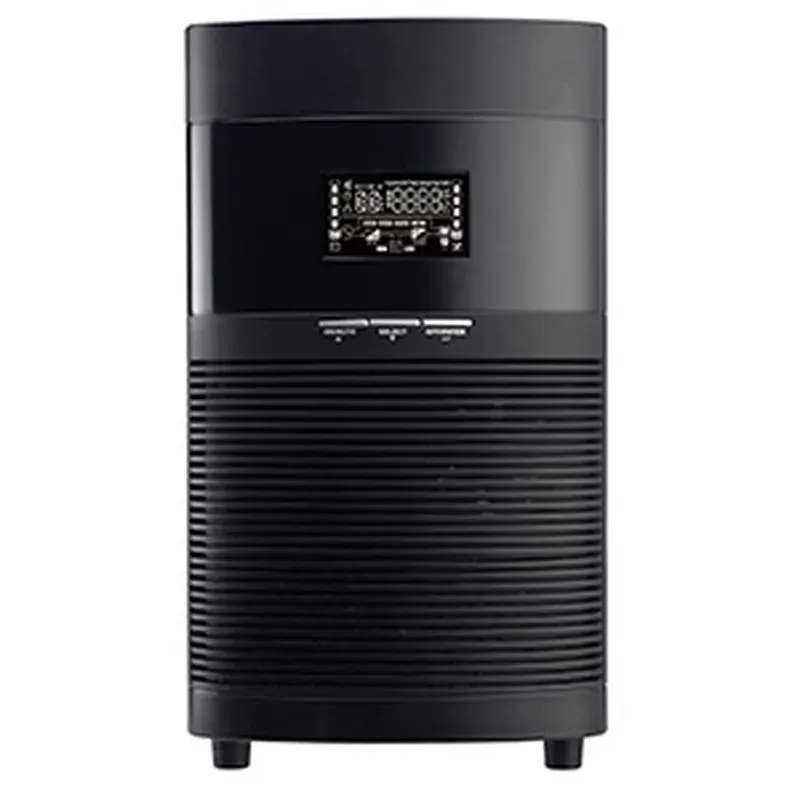

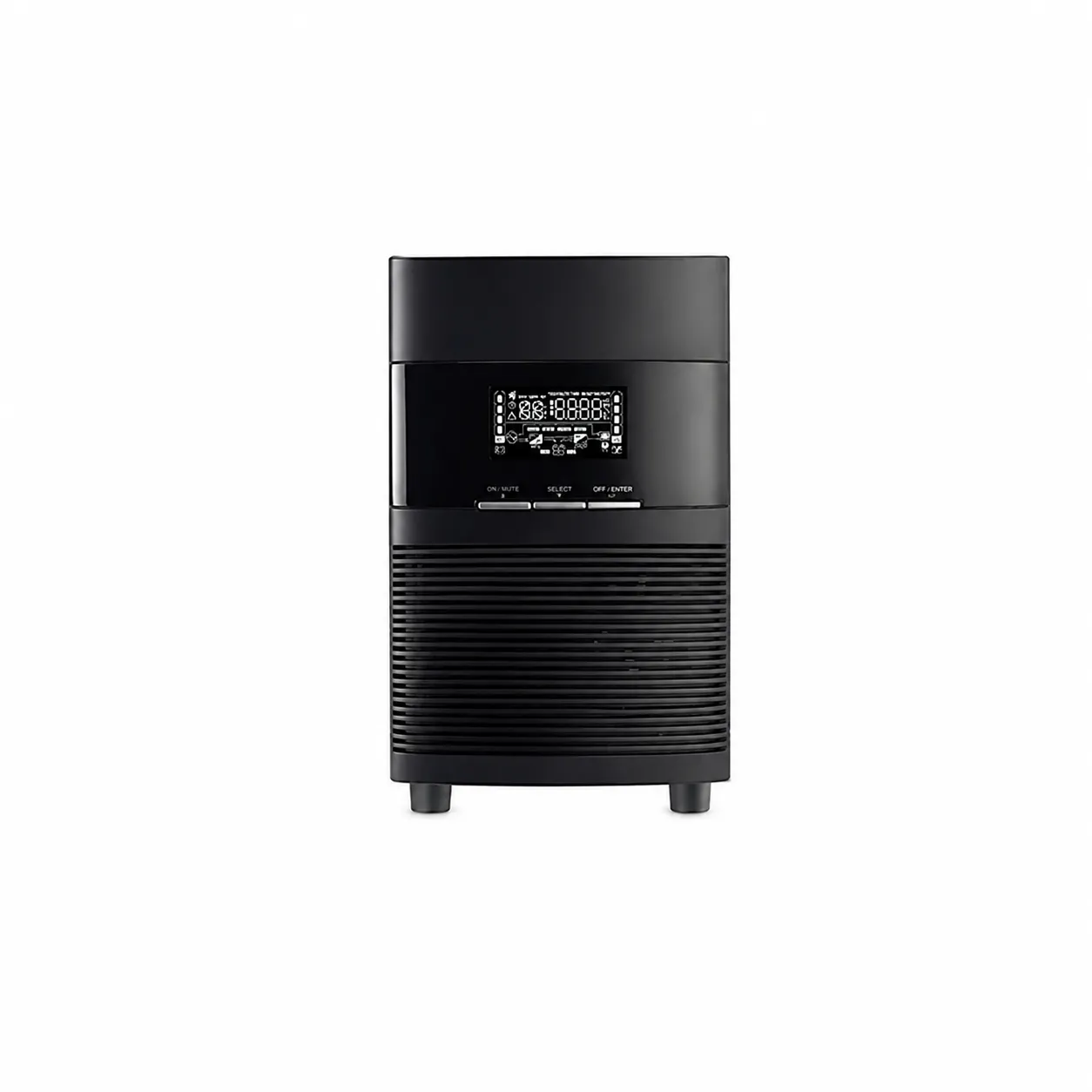

Single-phase online UPS 1–3kVA models from Wadi Tower provide reliable power protection for computers, network equipment, medical devices and other sensitive electrical loads.

The series includes 1kVA, 1.5kVA, 2kVA and 3kVA models. Each model provides equal kVA and kW output capacity through a unity output power factor of 1.0.

True Double-Conversion Protection

Wadi Tower uses true double-conversion online technology to isolate connected equipment from common power disturbances. It provides zero transfer time from AC mode to battery mode and delivers pure sine wave output.

The wide input voltage range allows the UPS to operate between 110V and 300V, depending on the connected load. Input power factor correction of at least 0.99 also supports efficient operation.

Single-Phase Online UPS 1–3kVA Features

• Available in 1kVA, 1.5kVA, 2kVA and 3kVA models.
• Single-phase input and single-phase output.
• True double-conversion online topology.
• Unity output power factor of 1.0.
• Zero transfer time to battery operation.
• Pure sine wave output.
• Wide input voltage range from 110V to 300V.
• Input power factor of at least 0.99.
• AC mode efficiency of up to 97%.
• ECO mode for energy-saving operation.
• Microprocessor-based control.
• Smart battery charger.
• Typical recharge time of four hours to recover 90% battery capacity.
• Generator compatibility.
• Comprehensive LCD status display.
• RS-232 and USB communication.
• Optional SNMP network management.
• Support for 50Hz and 60Hz frequency converter operation.

Applications

The Wadi Tower single-phase online UPS 1–3kVA range is suitable for:

• Desktop computers and workstations.
• Small servers and network equipment.
• Routers, switches and communication devices.
• Point-of-sale systems.
• Security and surveillance equipment.
• Medical and laboratory devices.
• Office equipment.
• Sensitive electronic loads.

Selecting the Correct UPS

The correct UPS capacity depends on the total connected load, equipment power factor, required backup time and expected future expansion.

Battery runtime changes according to the selected model and connected load. Equipment with high starting currents requires additional technical review.

Additional Product Information

For technical documents and product information, visit the PowerWadi Download Center:

https://powerwadi.com/download-center/

Request a Quote

Send your equipment list, total load and required backup time to PowerWadi. Our technical team will help you select the correct Wadi Tower model for your application.
