Overview

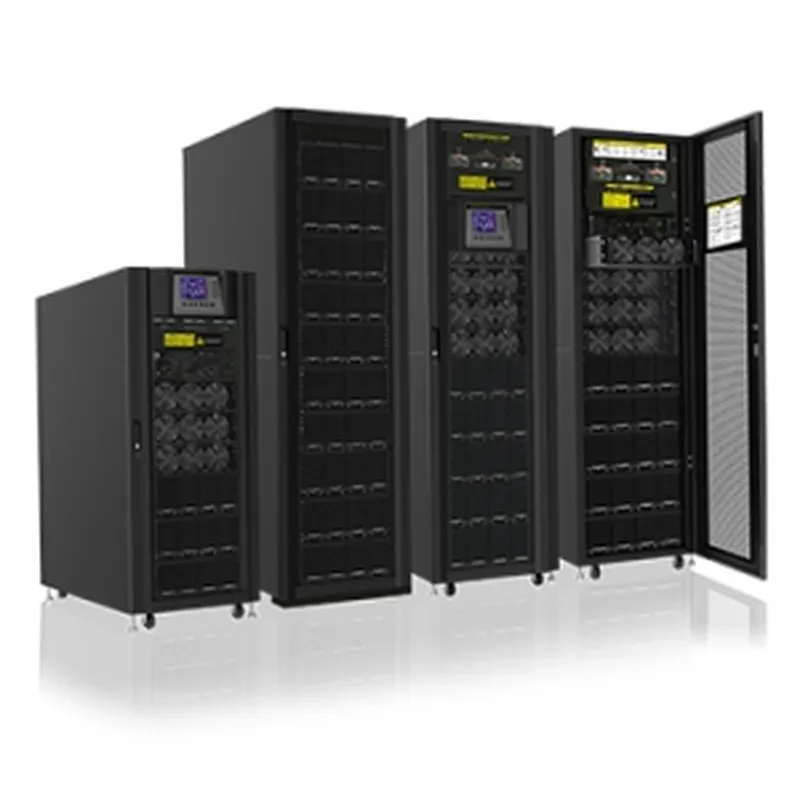

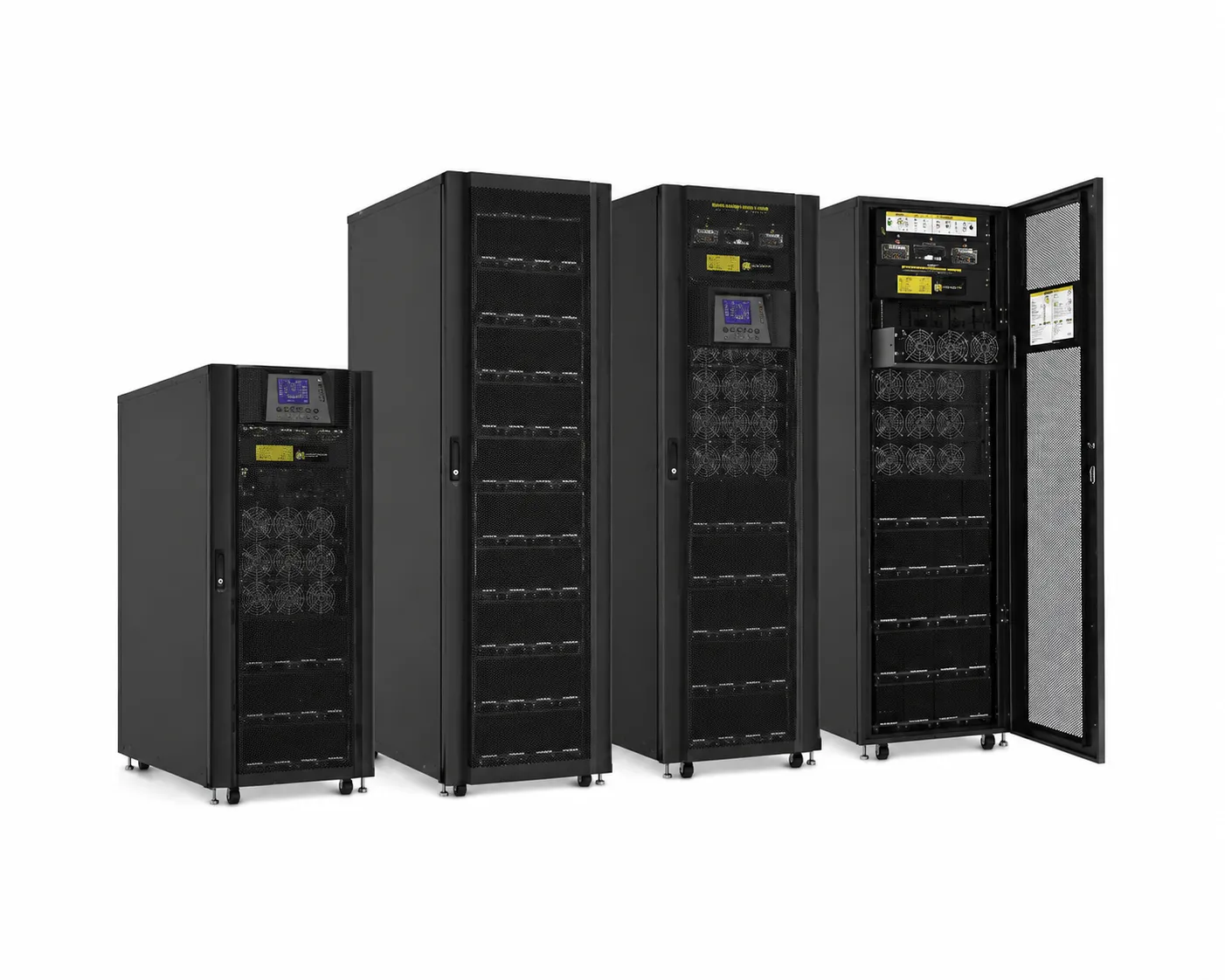

3-phase modular UPS 90–300kVA systems from Wadi Plus provide scalable power protection for critical commercial, industrial and mission-critical applications.

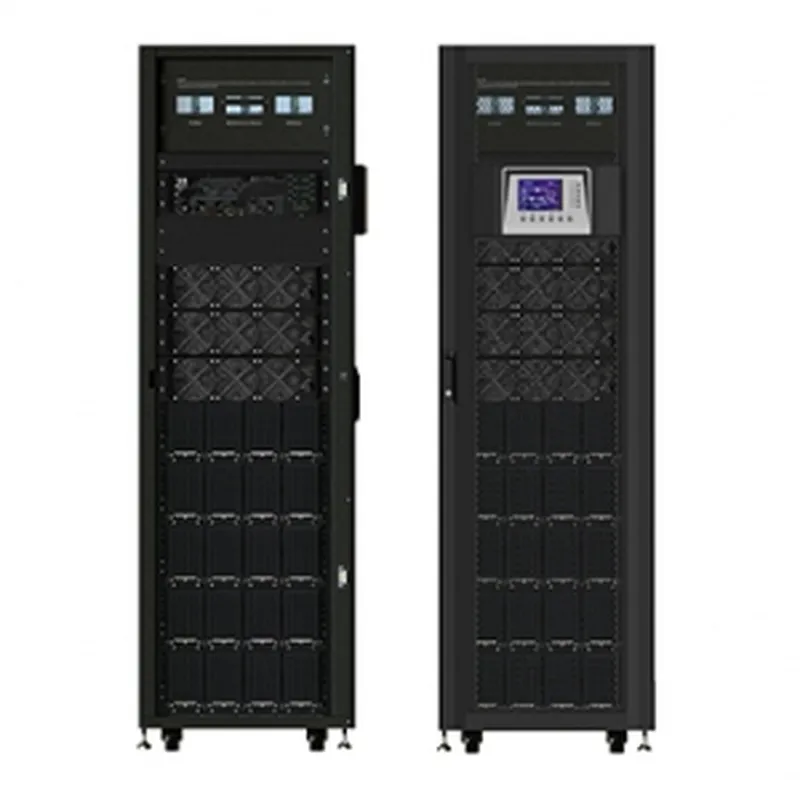

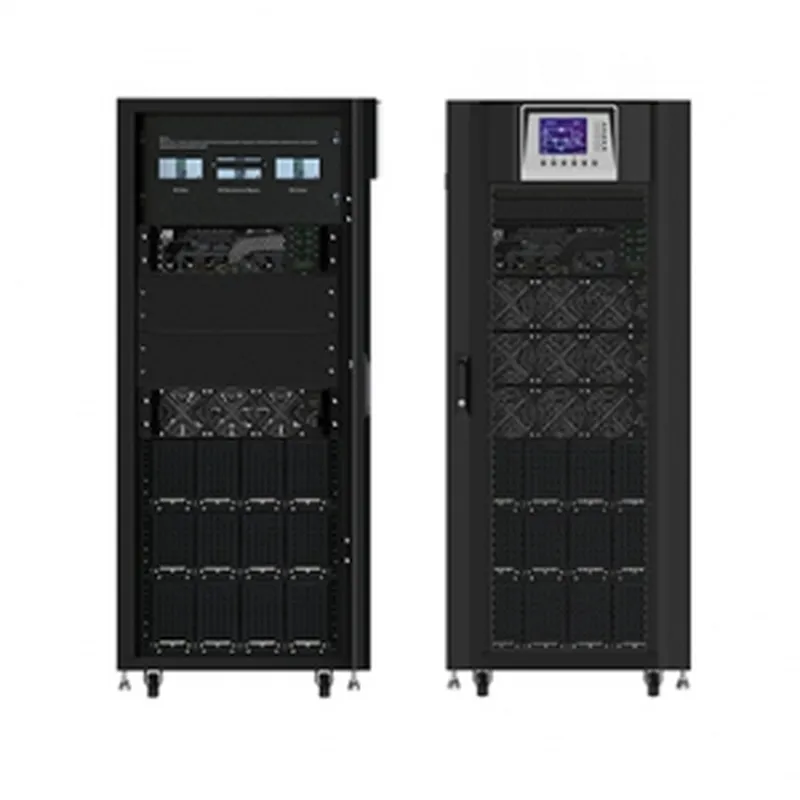

Wadi Plus is a three-phase online UPS with a modular design that supports future capacity expansion. A single 42U cabinet can provide up to 300kW, while parallel cabinet configurations can expand the system capacity according to project requirements.

Scalable and Redundant Design

The modular architecture helps organizations increase UPS capacity as their loads grow. It also supports N+1 and N+X redundancy configurations to improve system availability and simplify future expansion.

DSP control and parallel technology provide accurate system management. The unity output power factor delivers equal kVA and kW capacity, helping maximize the available power for connected critical loads.

3-Phase Modular UPS 90–300kVA Features

• Three-phase online UPS operation.
• Modular and scalable system architecture.
• Cabinet capacities from 90kVA to 300kVA.
• Maximum capacity of up to 300kW in one 42U cabinet.
• Parallel cabinet configurations for larger systems.
• N+1 and N+X redundancy options.
• Unity output power factor, with kVA equal to kW.
• DSP-based control.
• High-efficiency operation.
• Designed to handle demanding and critical loads.
• Flexible capacity expansion for future requirements.

Applications

The Wadi Plus 3-phase modular UPS 90–300kVA range is suitable for:

• Data centers and server rooms.
• Hospitals and medical facilities.
• Laboratories and research facilities.
• Banks and financial institutions.
• Telecommunications systems.
• Industrial control and production facilities.
• Commercial buildings.
• Critical infrastructure and enterprise applications.

Selecting the Correct UPS Configuration

The correct UPS capacity depends on the connected load, required redundancy level, expected future expansion, battery backup time and site operating conditions.

PowerWadi recommends reviewing the complete load profile and project requirements before selecting the cabinet capacity, number of power modules and battery system.

Additional Product Information

For technical documents and product information, visit the PowerWadi Download Center:

https://powerwadi.com/download-center/

Request a Quote

Send your load schedule, required backup time, redundancy requirement and expected future expansion to PowerWadi. Our technical team will help you select the correct Wadi Plus UPS configuration for your facility.
