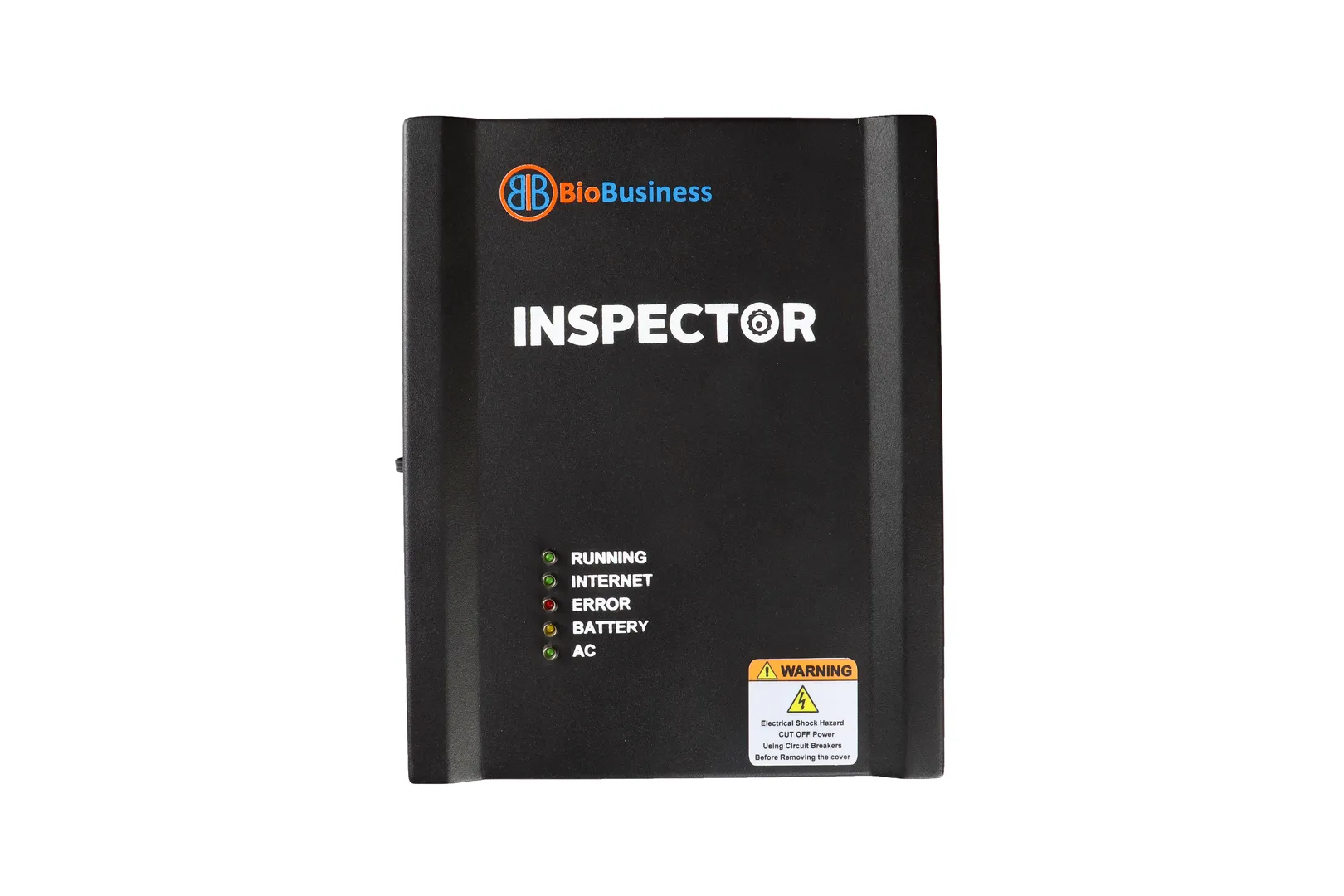

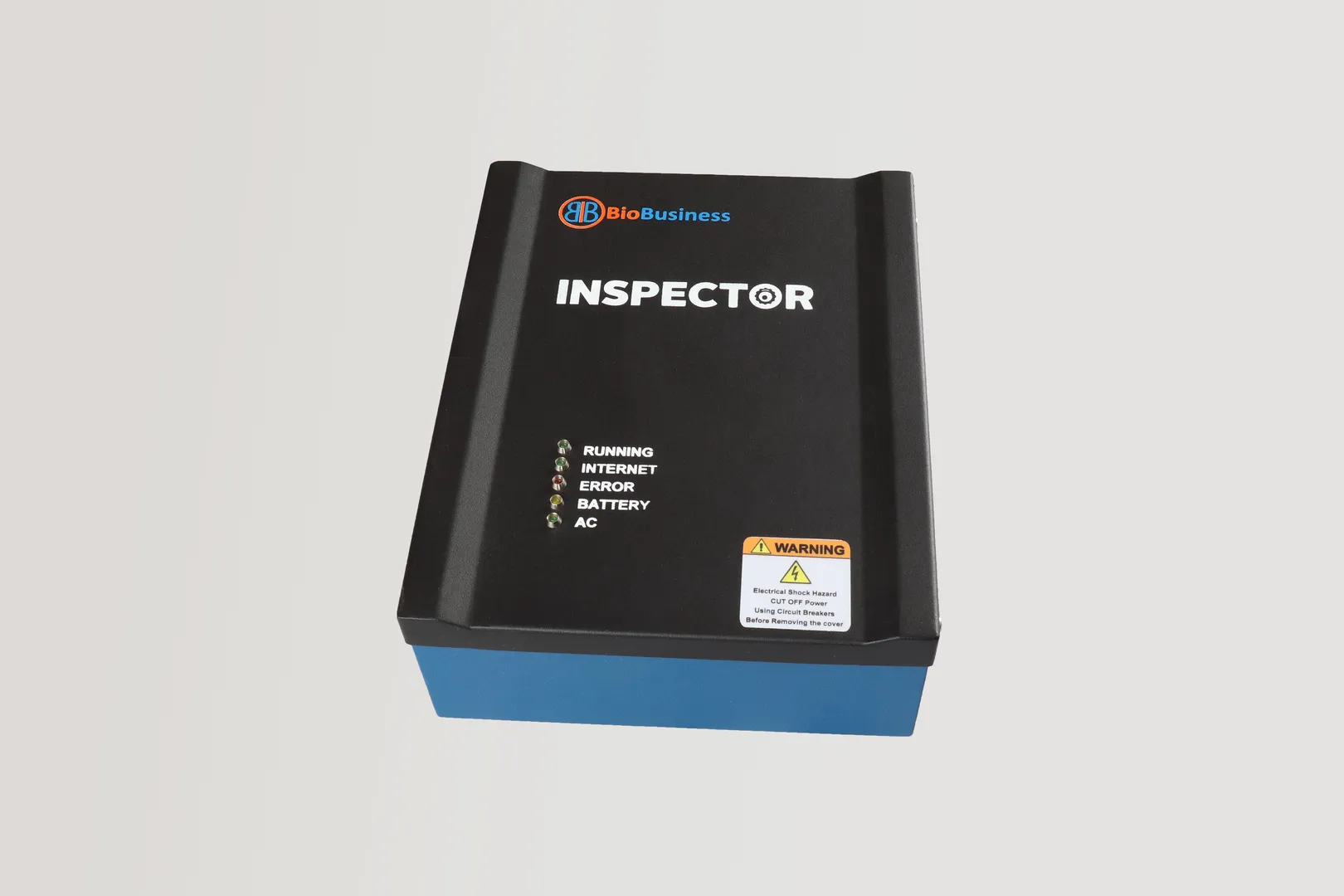

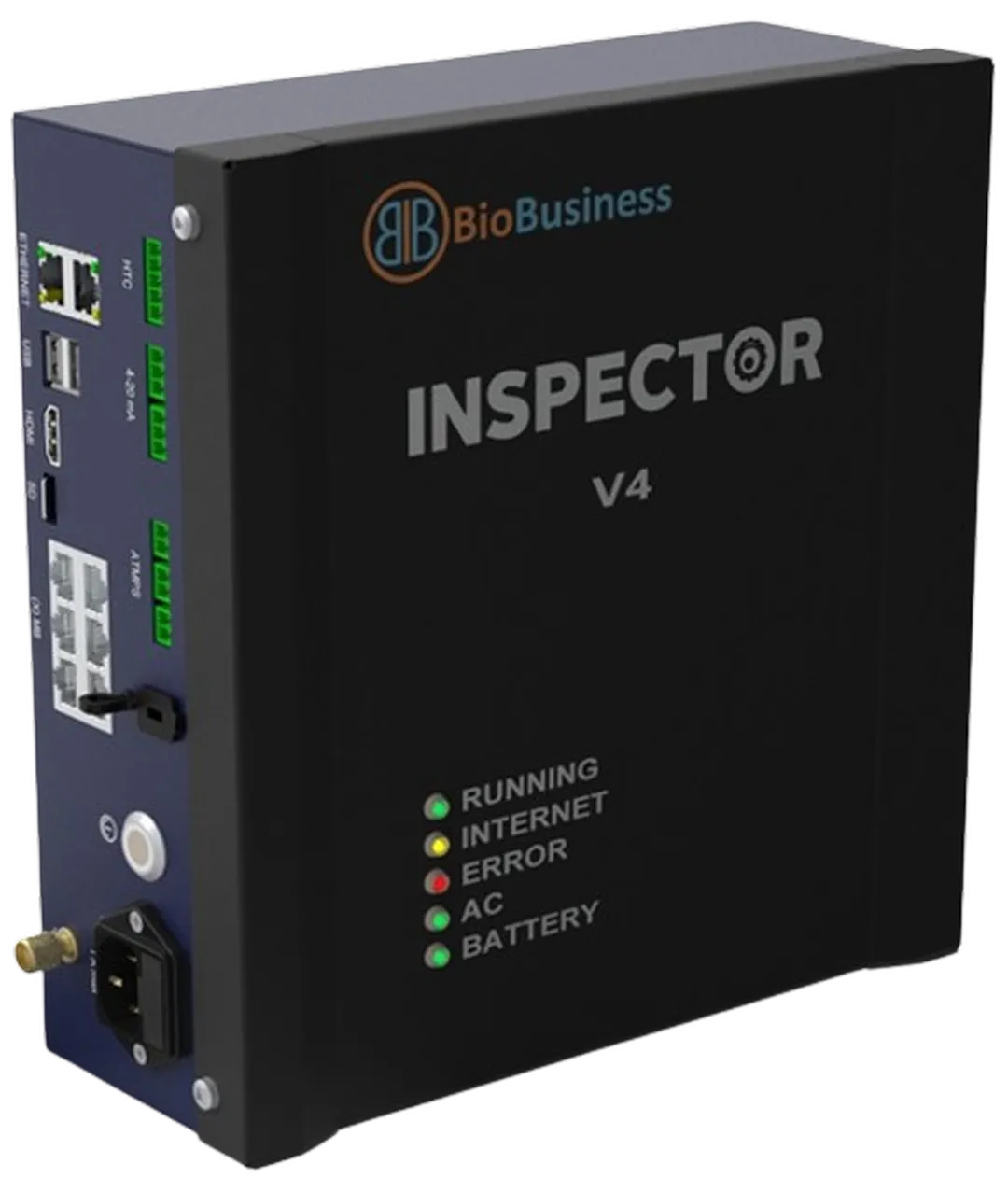

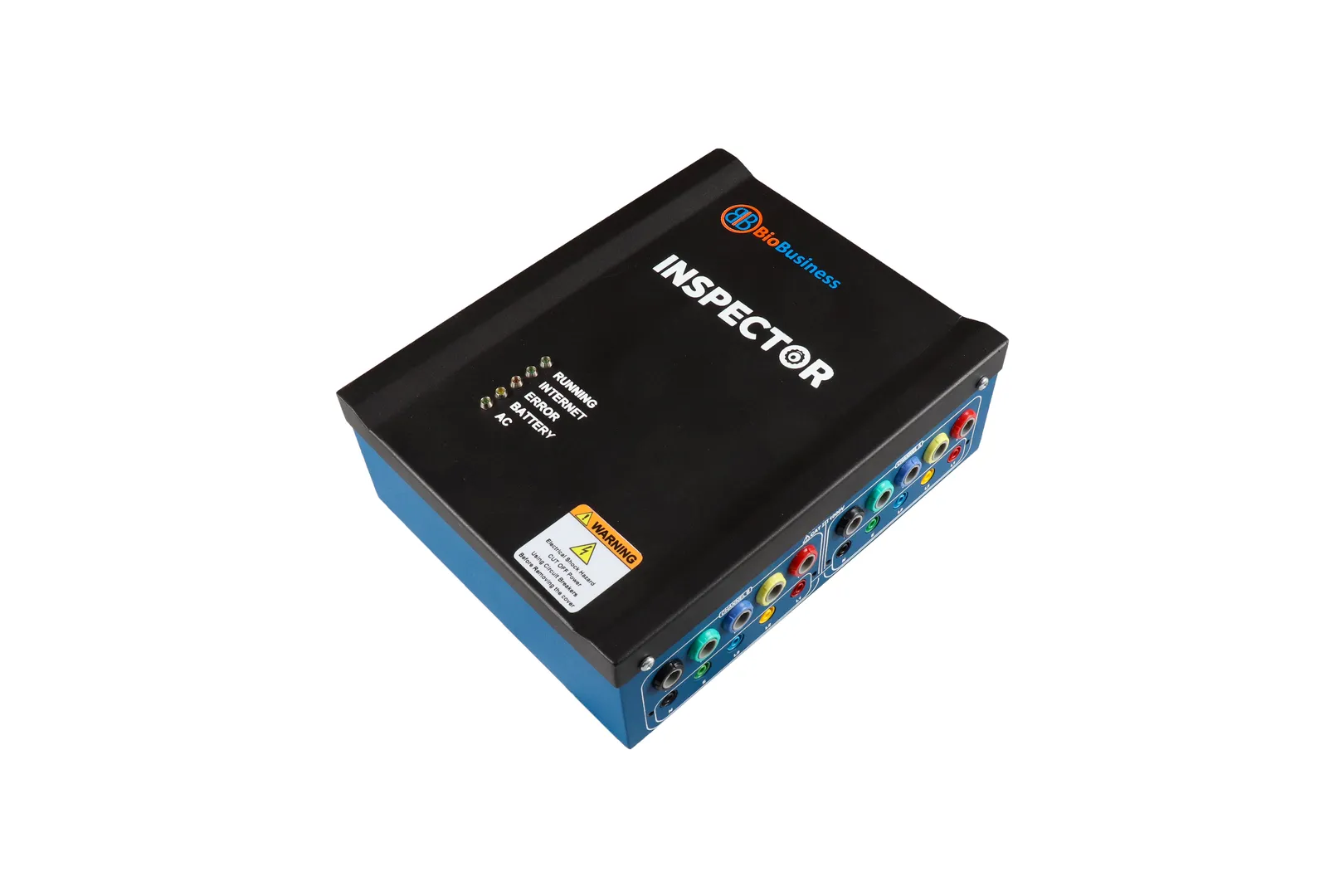

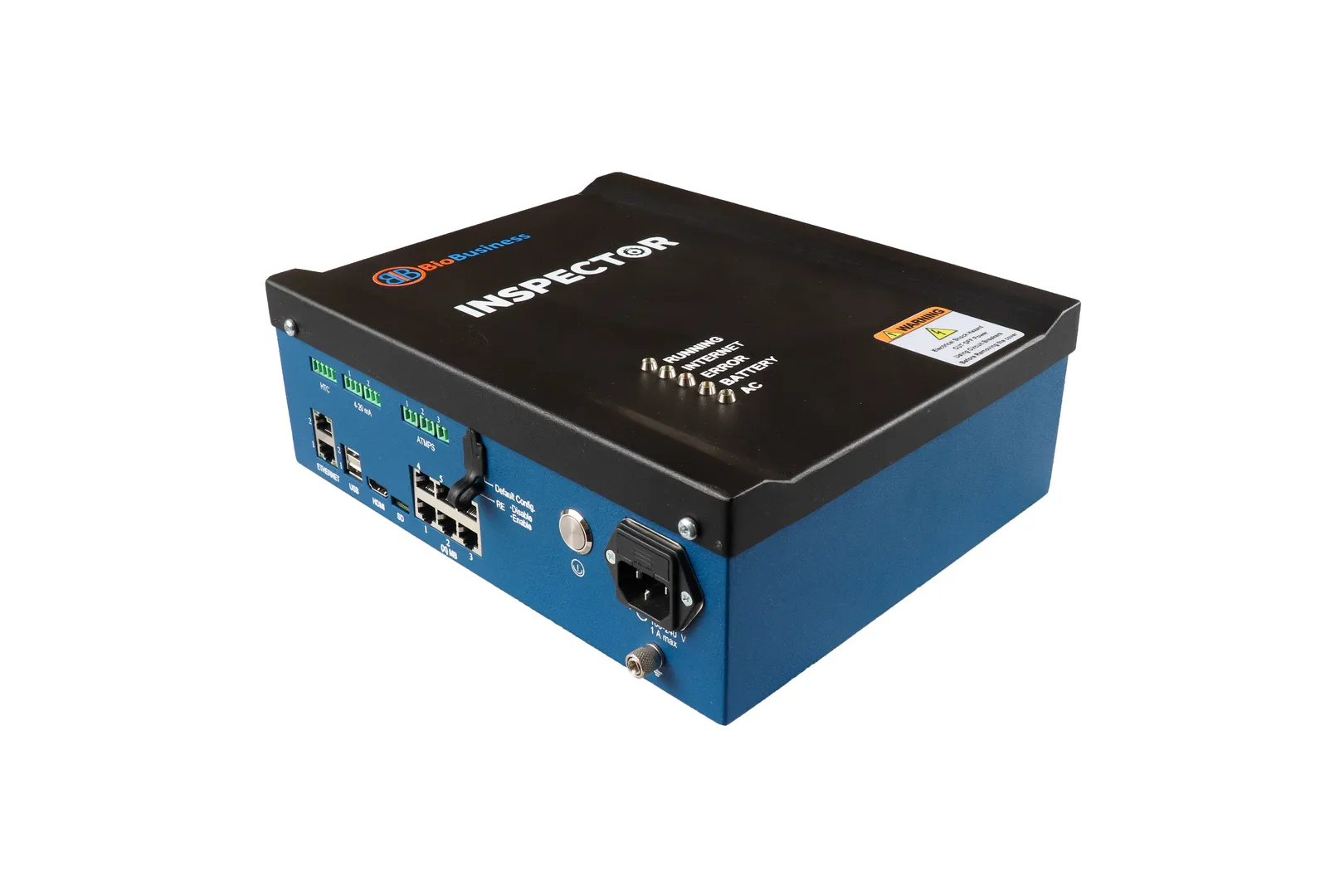

Inspector INS4-1

Stationary Power Quality Analyzer for 24/7 Monitoring

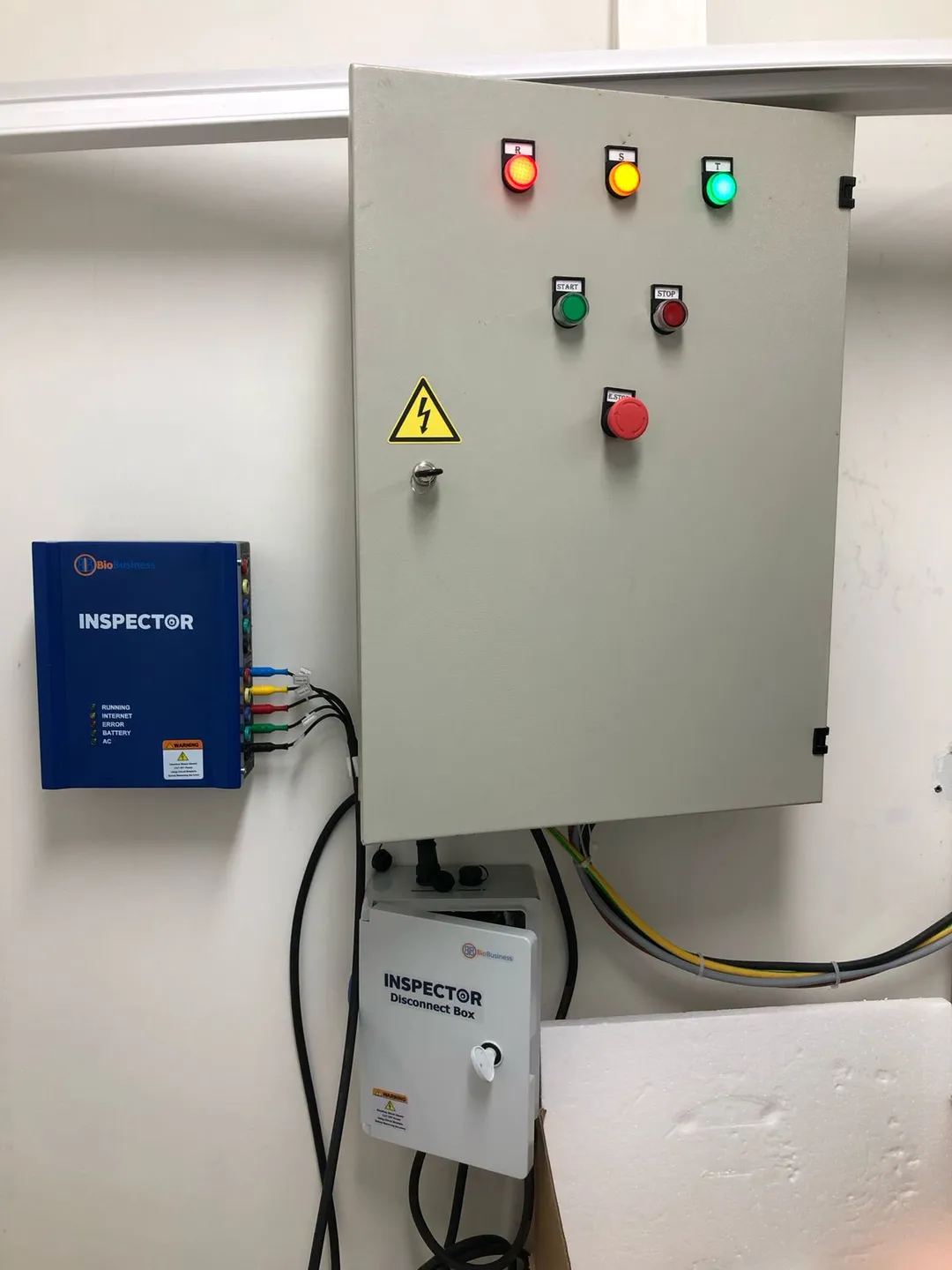

Inspector INS4-1 is an advanced stationary power quality analyzer designed for continuous 24/7 monitoring and predictive maintenance. Once installed, it monitors power quality, electrical parameters, environmental conditions and other critical facility parameters without the monitoring gaps associated with temporary field surveys.

The system is suitable for medical equipment, industrial facilities, data centers, renewable-energy installations, telecommunications infrastructure, IT facilities and building management systems.

Dual Isolated Power Quality Channels

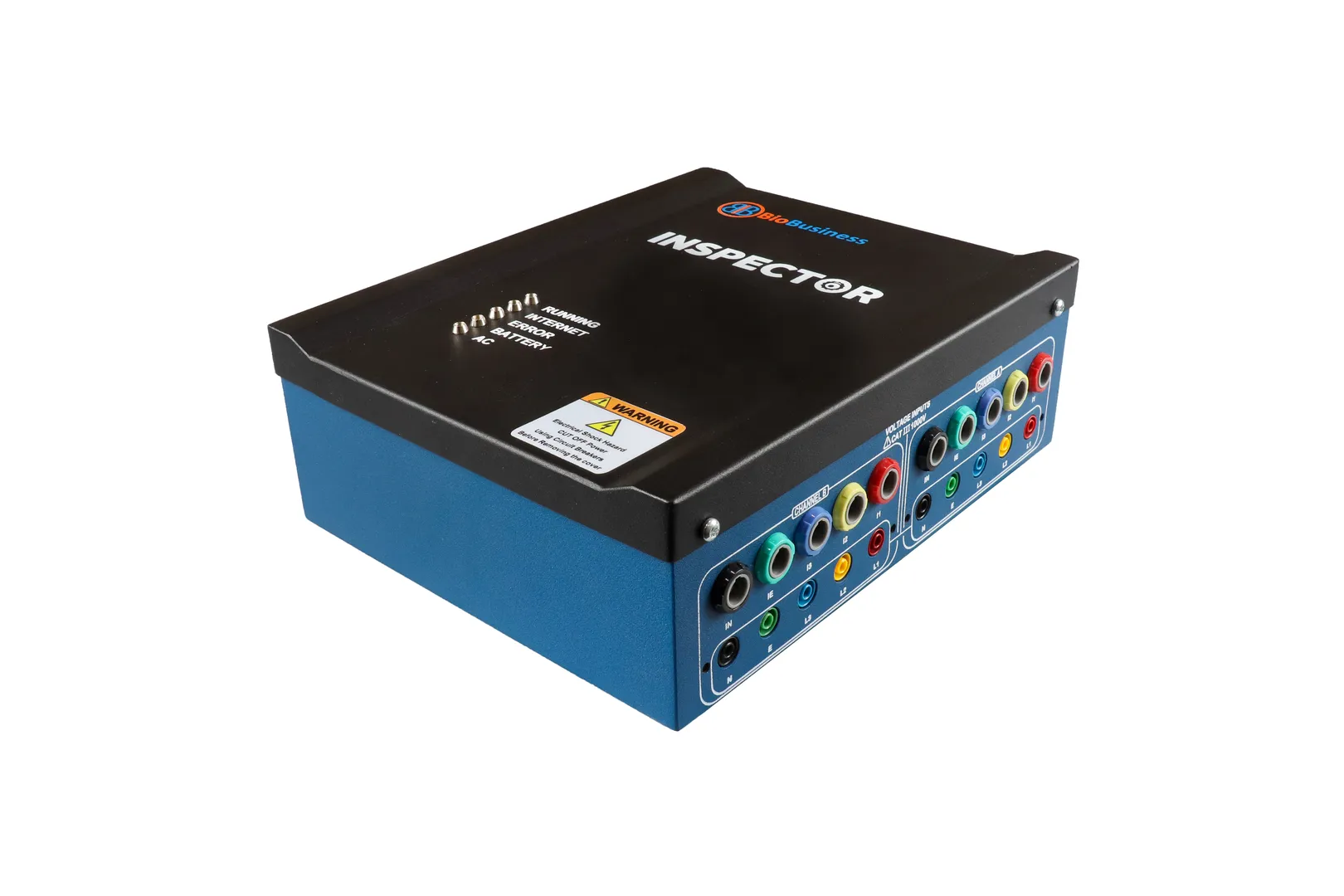

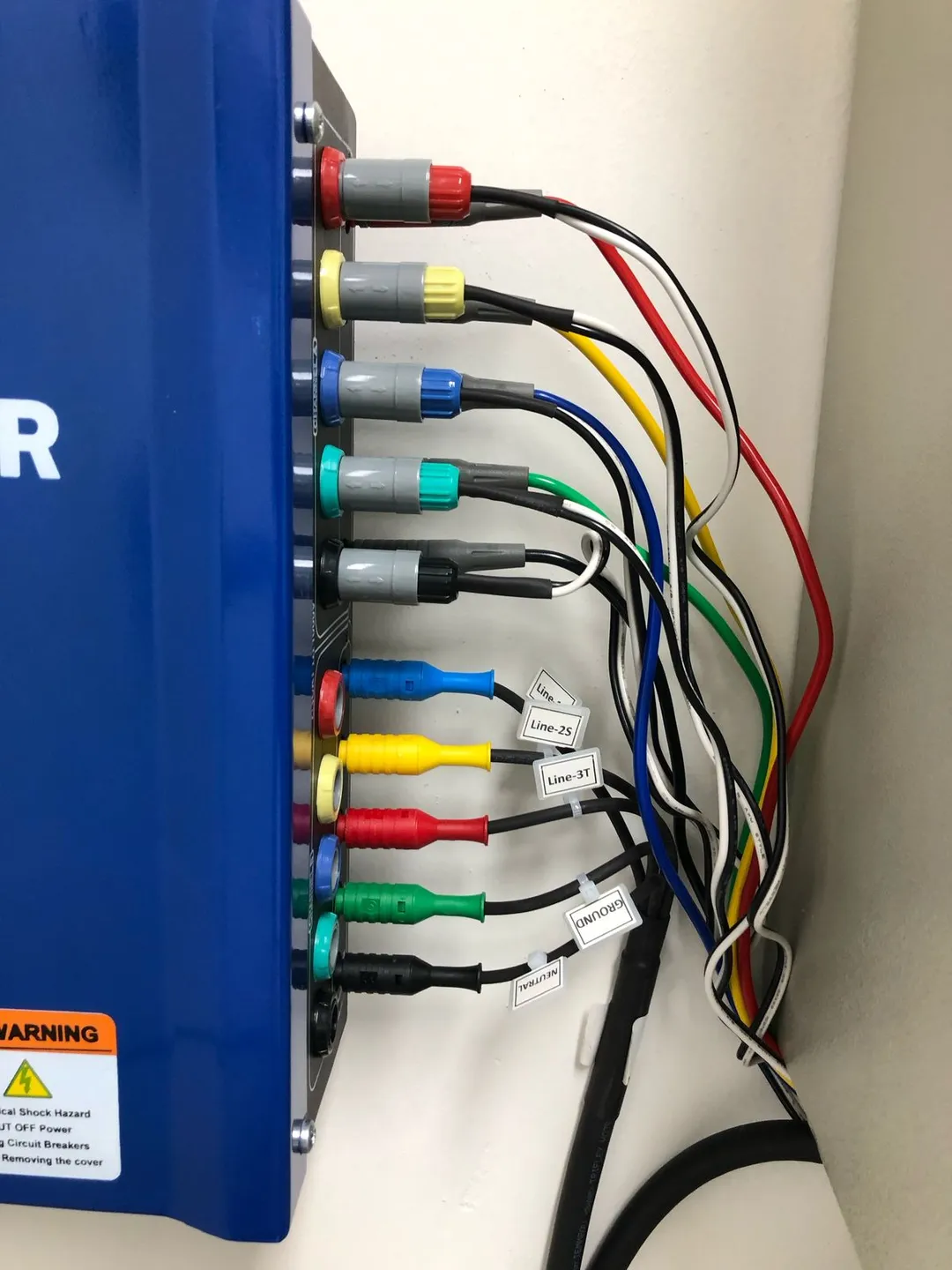

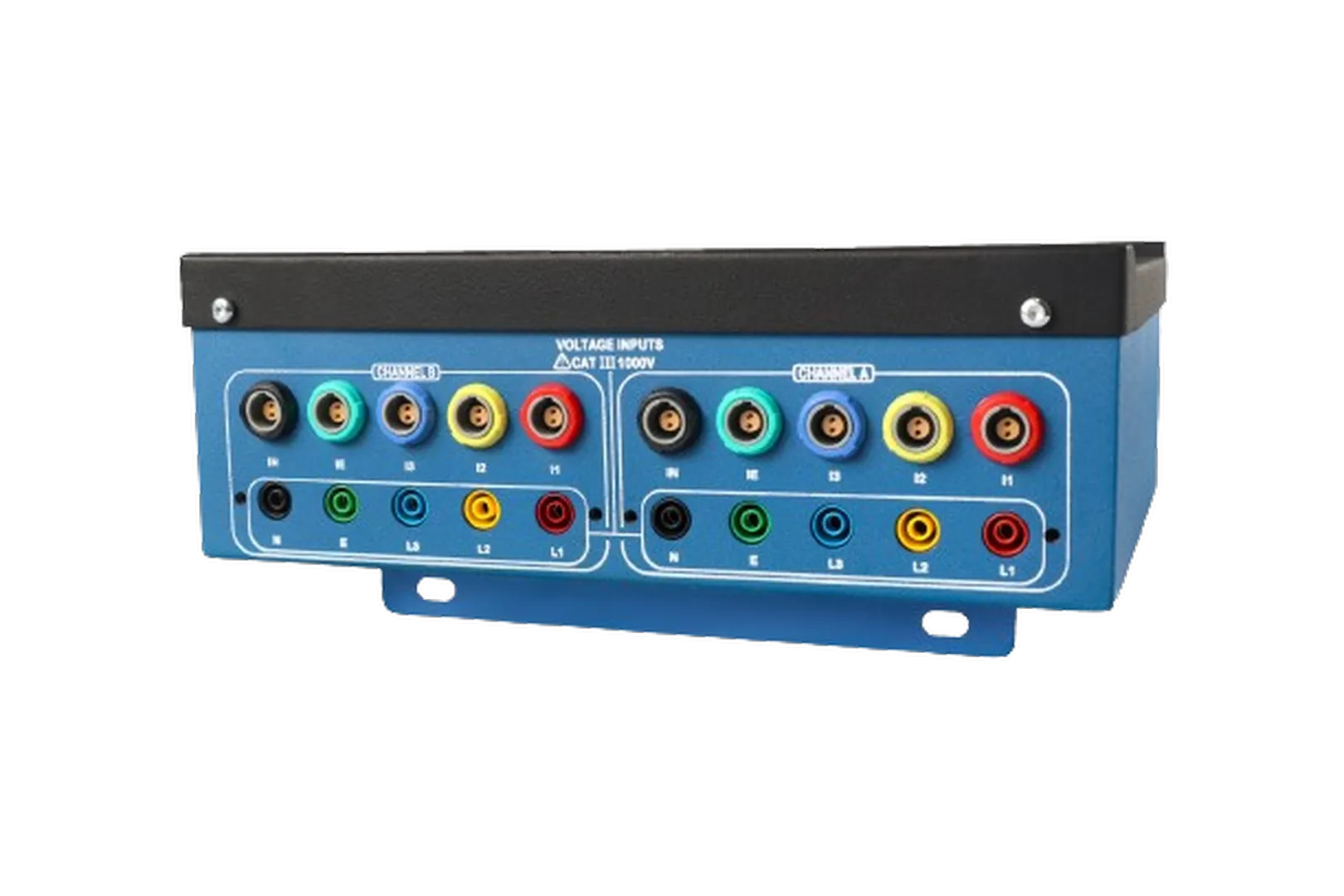

Inspector INS4-1 provides two isolated power-quality channels. Each channel includes five voltage inputs and five current inputs, allowing simultaneous monitoring of two independent electrical sources or feeders.

The analyzer supports:

• Single-phase, two-wire systems
• Three-phase, three-wire delta systems
• Three-phase, four-wire star systems
• Simultaneous monitoring of utility and UPS output
• Monitoring of two independent feeders

Voltage measurements cover 0 to 1000 VRMS with 0.1 VRMS resolution and ±0.5% accuracy. Current measurements cover 0 to 1000 A with 0.1 A resolution and ±2% accuracy.

A 24-bit ADC and a sampling rate of 32 KSPS for each input provide detailed acquisition of electrical waveforms and power-quality events.

Comprehensive Electrical Measurements

This stationary power quality analyzer measures and records:

• RMS line-to-line and line-to-neutral voltage
• RMS current and crest factor
• Active, reactive and apparent power
• True, displacement and demand power factor
• Active, reactive and apparent energy
• Voltage and current total harmonic distortion
• Harmonics and interharmonics
• Voltage and current unbalance
• Voltage and current waveform peaks
• Frequency and voltage flicker
• K-Factor and phase-sequence detection
• Power demand values

Electrical Event Detection

Inspector INS4-1 detects electrical disturbances according to IEC 61000-4-30 power-quality measurement classifications.

Detected events include:

• Voltage dips and swells
• Voltage interruptions
• Voltage transients
• Rapid voltage changes
• Frequency variations
• Inrush current
• Total harmonic distortion
• Phase-sequence events

The system captures the beginning and end of each event, including five cycles before and five cycles after the disturbance. This helps maintenance teams investigate incidents and identify whether problems originate upstream or downstream.

Environmental and Grounding Monitoring

Inspector INS4-1 combines electrical analysis with environmental monitoring. The standard system supports three external temperature sensors covering 0°C to 85°C with ±0.5°C accuracy.

Additional monitoring capabilities include:

• Earth current measurement from 0 to 10 A
• Earth resistance measurement up to 200 Ω
• Tripping and non-tripping grounding measurement
• Two 4-20 mA analog sensor inputs
• Optional humidity and temperature sensors
• Pressure, flow and process sensor integration

Expandable Monitoring Modules

Inspector INS4-1 can be expanded with specialized modules:

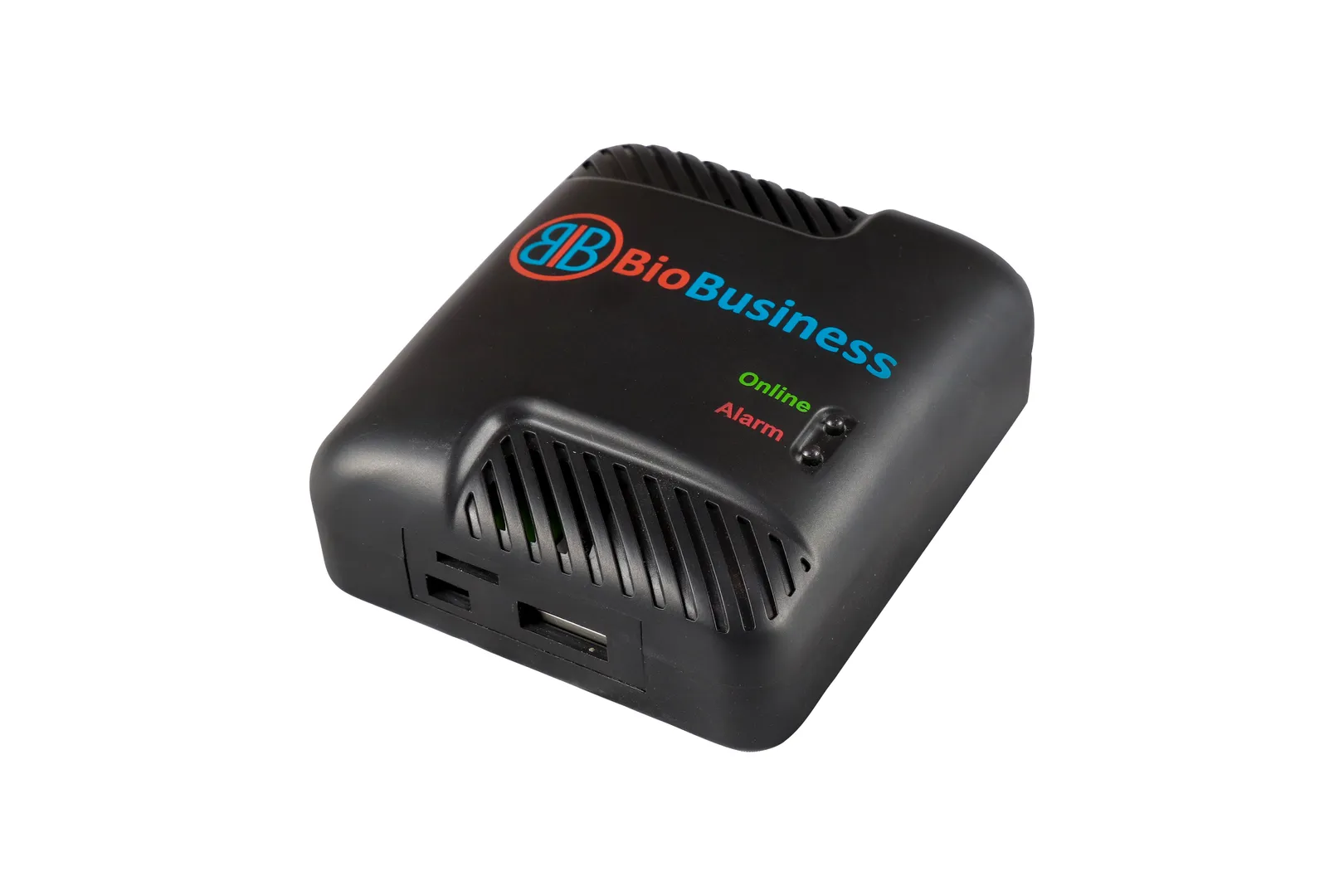

• THPAQ R1: Monitors temperature, humidity, barometric pressure, CO₂, TVOC, NOx, particulate matter, air quality and vibration.
• THPAQ R2: Monitors temperature, relative humidity and barometric pressure.

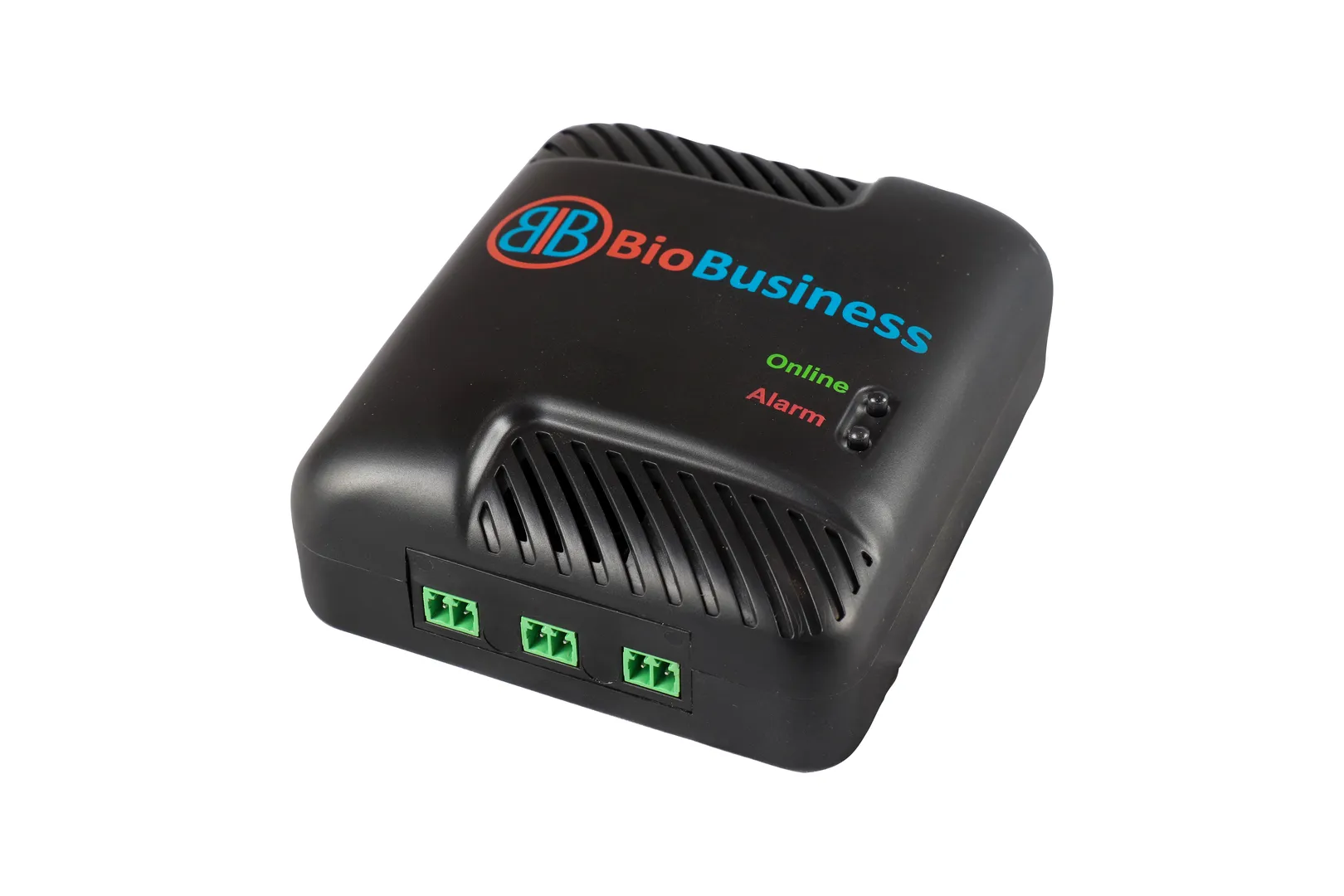

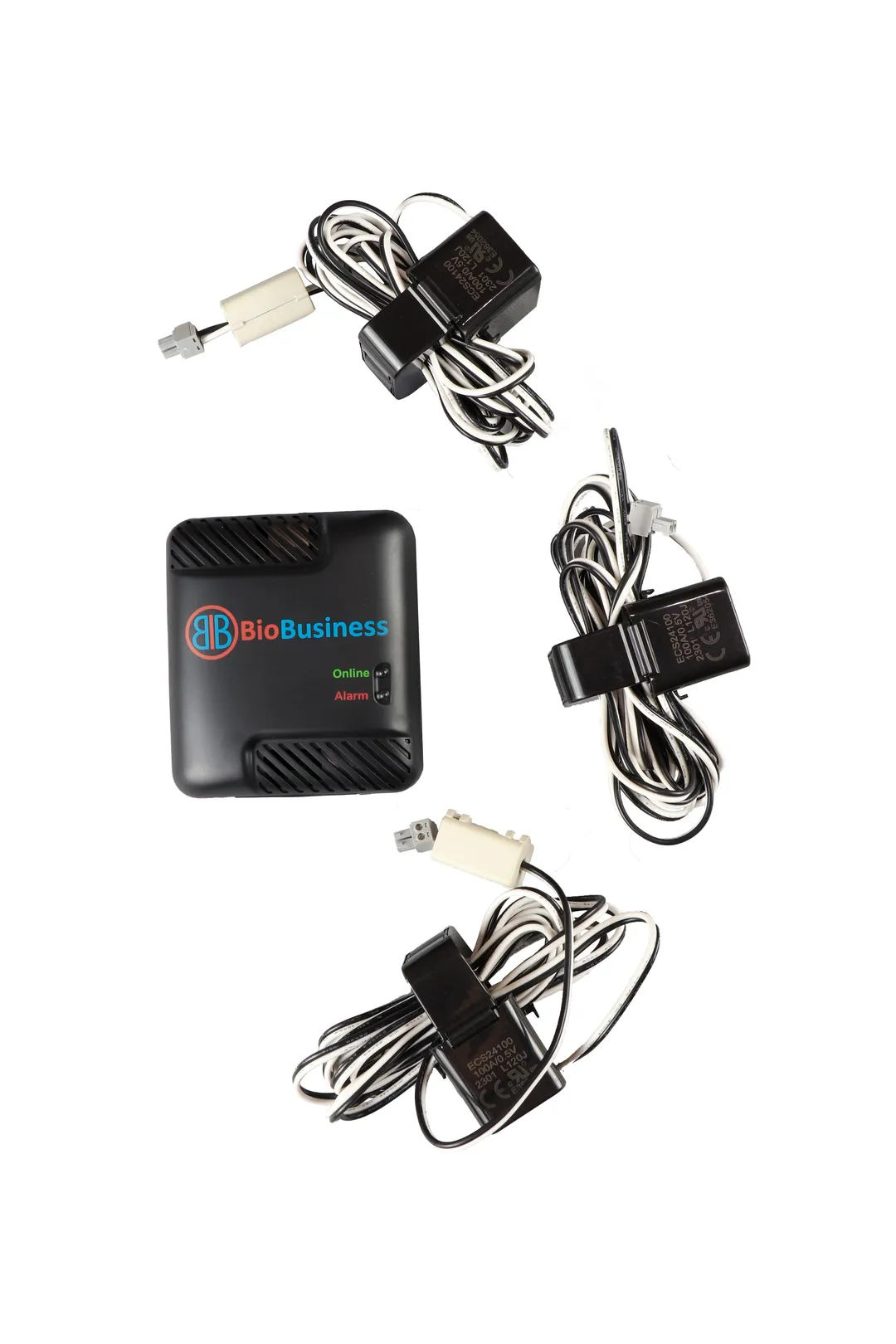

• MMU: Provides non-invasive current monitoring for motors, pumps and compressors using split-core current transformers.
• SIB: Connects up to eight 4-20 mA industrial sensors per module, with support for cascading multiple units.
• SMU: Measures ambient hydrogen sulfide and sulfur dioxide in industrial environments.

Communication and System Integration

Inspector INS4-1 can integrate with monitoring, automation, SCADA and building management systems through:

• HTTP and HTTPS
• Modbus
• BACnet
• IEC 61850
• DNP3
• MQTT
• SNMP
• IEC 62056
• Email notifications

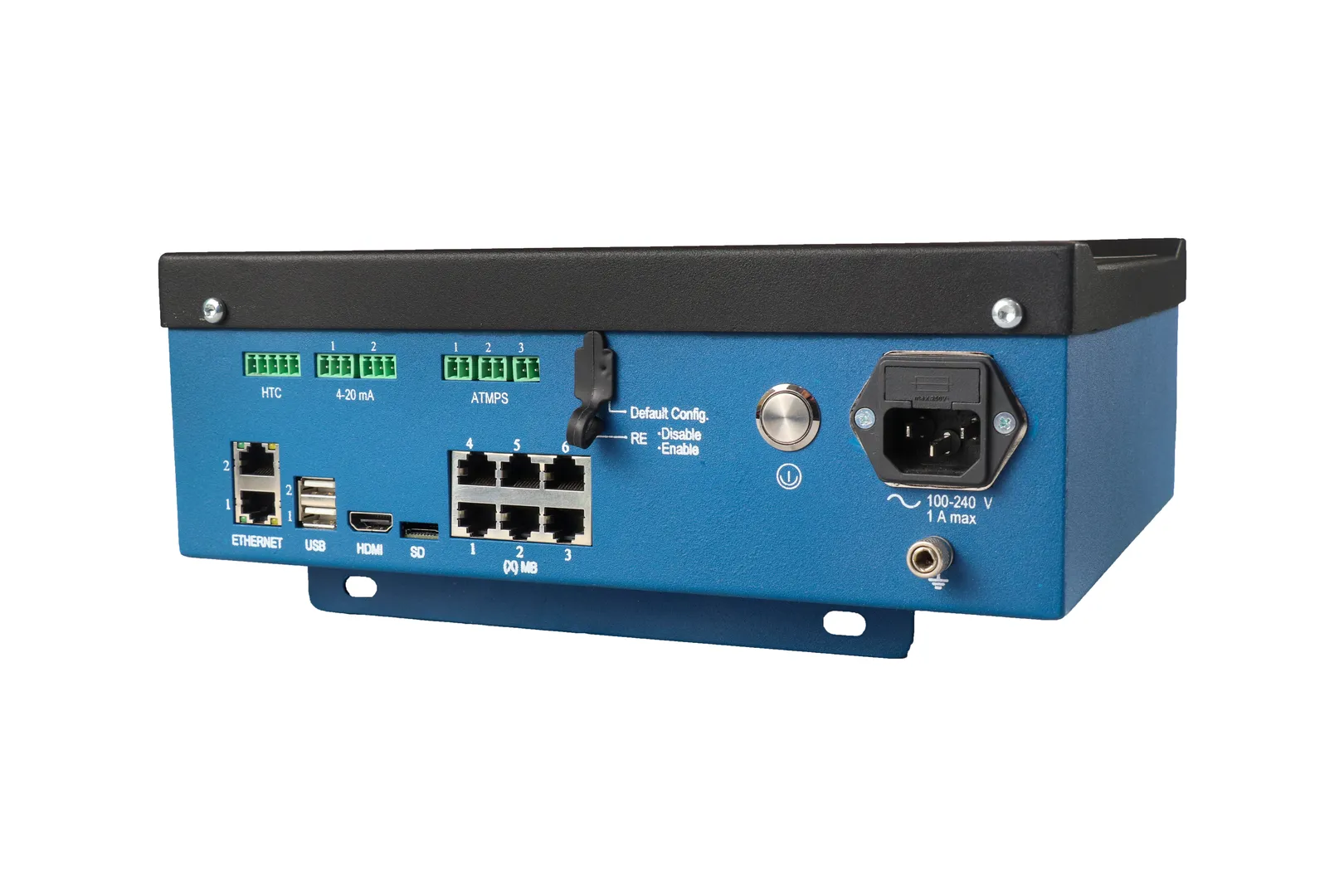

The unit includes two Gigabit Ethernet ports, six RS-485 ports, two USB 2.0 ports and one HDMI 2.0 port.

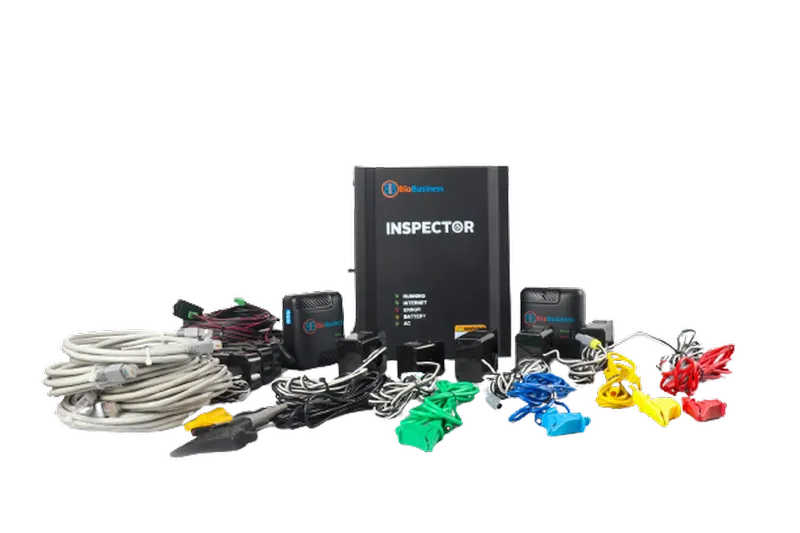

Standard Package Contents

The standard Inspector INS4-1 package includes:

• Inspector main unit

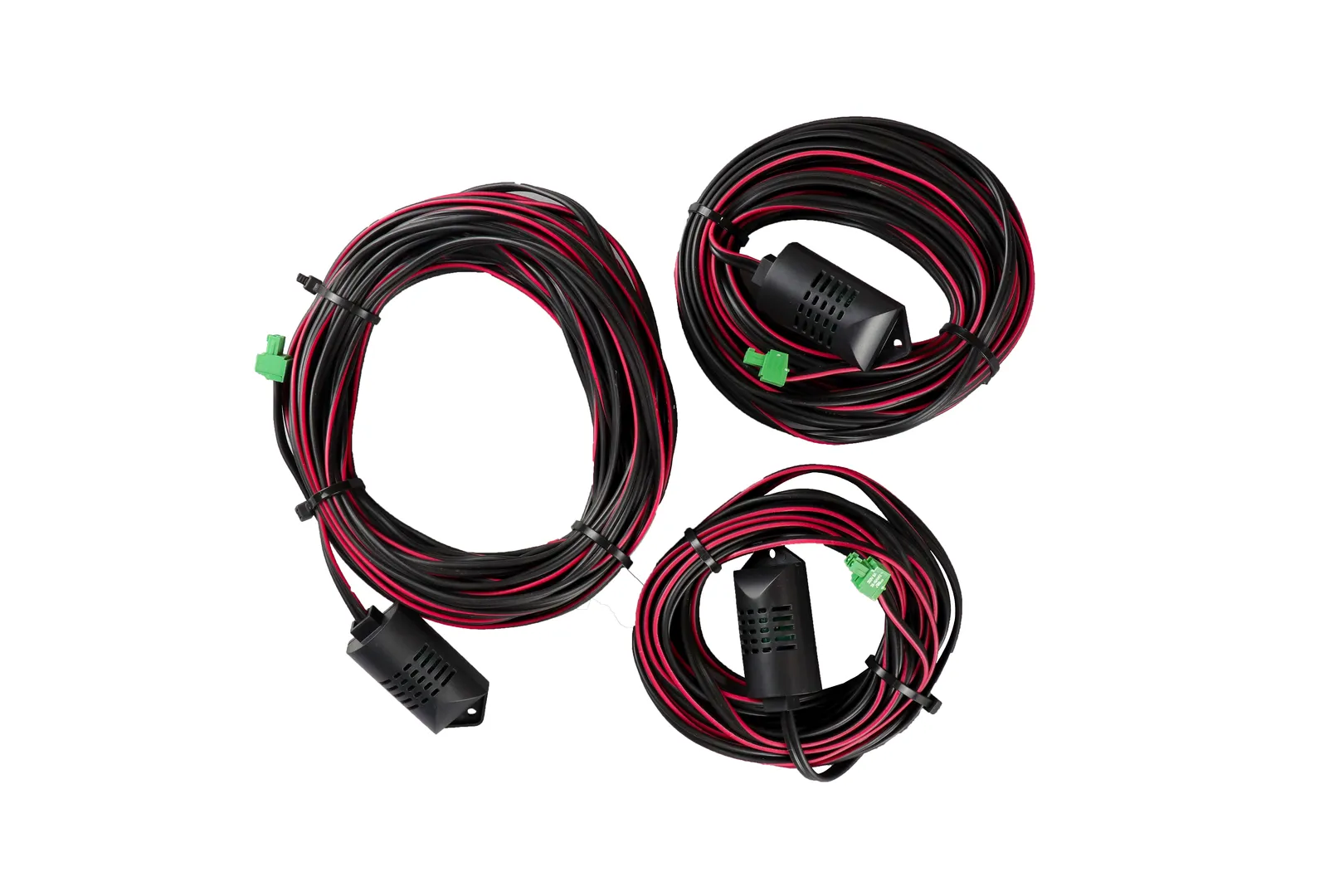

• Three external temperature sensors
• Motor Monitoring Unit

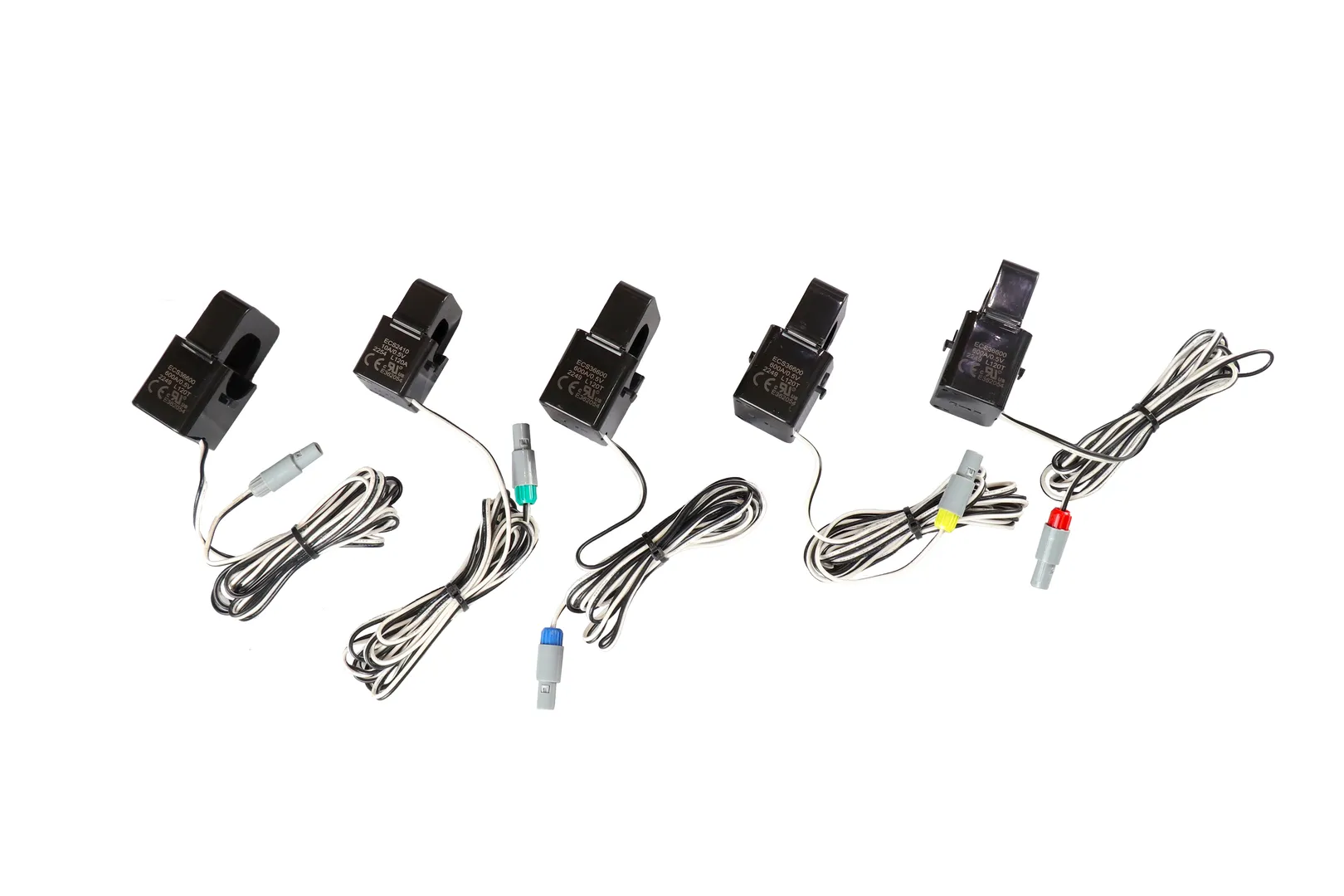

• Three 100 A split-core current coils
• THPAQ environmental and air-quality unit
• Voltage measurement cables
• Network and installation cables
• Delta and star connection cable
• 10 A earth-current clamp
• Four 600 A current coils for three-phase and neutral measurement
