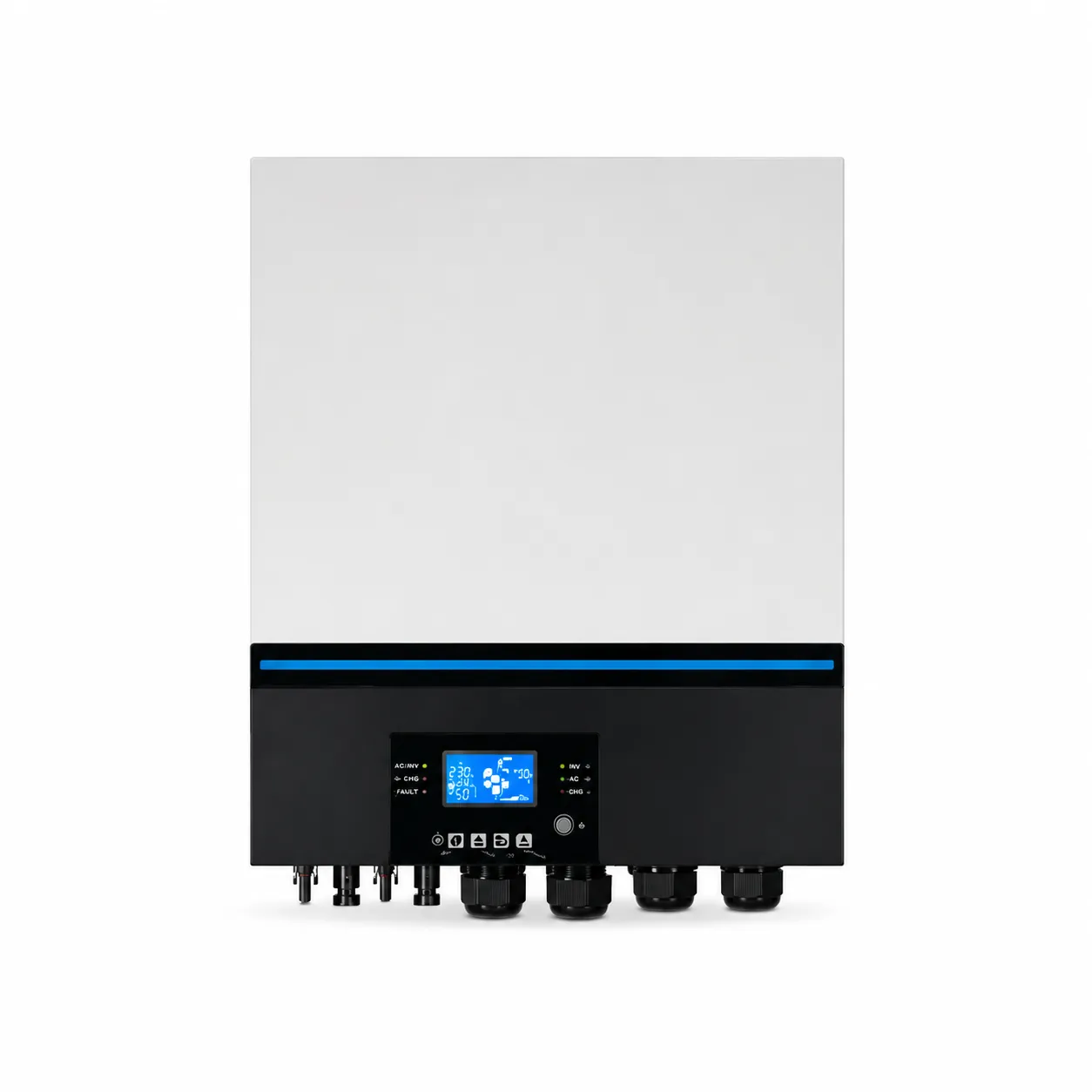

Wadi MAX T Off-Grid Inverter is designed for reliable solar power and backup applications, offering high power capacity in 8kW, 11kW, and 12kW models. It provides pure sine wave output for stable operation of connected loads and supports 48V battery systems.

The inverter supports dual outputs for smart load management, allowing better control and prioritization of connected loads. It also features battery independent operation, giving more flexibility in system design and operation.

Wadi MAX T includes MPPT solar charging with high PV input capability. The 8K model supports up to 11,000W PV array power, the 11K model supports up to 13,000W, and the 12K model supports up to 18,000W with a maximum of 12,000W per tracker. The MPPT operating range is 90–450VDC, with a maximum PV open circuit voltage of 500VDC.

The 12K model supports upgraded maximum PV input current up to 60A, making it suitable for larger PV configurations. Maximum charging current reaches up to 120A for the 8K model, 150A for the 11K model, and 200A for the 12K model.

Wadi MAX T includes built-in WiFi with mobile app support for monitoring and OTA firmware updates. It also supports USB On-the-Go, built-in BMS communication, built-in meter calibration, RGB lights for status indication, and a built-in anti-dust kit for improved durability.

For larger systems, Wadi MAX T supports parallel operation up to 6 units. Optional DC output is also available for DC fan, LED bulb, router, and similar DC loads.

Available Models:
• Wadi MAX T 8K – 8000VA / 8000W
• Wadi MAX T 11K – 11000VA / 11000W
• Wadi MAX T 12K – 12000VA / 12000W

Key Features:
• Pure sine wave output
• 8kW, 11kW, and 12kW rated power models
• 48V battery system
• Battery independent design
• Dual outputs for smart load management
• Built-in WiFi with mobile app monitoring
• OTA firmware update support
• Built-in BMS communication port
• RGB status lights
• MPPT solar charger
• Maximum PV input current up to 60A for 12K model
• Maximum charge current up to 200A
• USB On-the-Go support
• Built-in meter calibration
• Built-in anti-dust kit
• Optional DC output for DC loads
• Parallel operation up to 6 units
