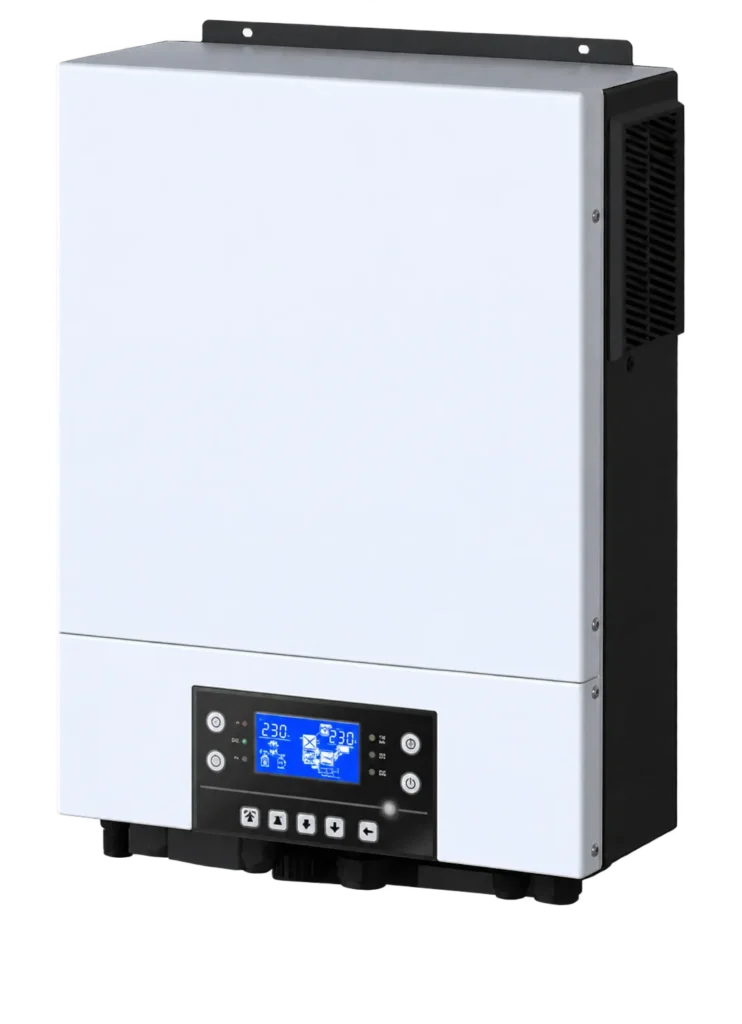

Wadi VM | 4–6 kW

Download DatasheetThe Wadi VM series delivers pure sine wave output with built-in MPPT solar charging in 4 kW and 6 kW models. Dual AC outputs support smart load management, while built-in WiFi enables mobile monitoring and OTA firmware upgrades.

Designed for battery-independent operation, the series also features a detachable LCD control module, a BMS communication port, USB On-the-Go support, and a built-in anti-dust kit.

Key Features

• Rated output power: 4 kW or 6 kW.
• Maximum PV array power: 5,600 W or 8,000 W, depending on the model.
• MPPT operating voltage range: 60–450 VDC.
• Maximum PV open-circuit voltage: 500 VDC.
• Maximum PV input current: 40 A.
• Maximum solar charging current: 120 A.
• Maximum AC charging current: 100 A.
• Maximum total charging current: 120 A.
• Pure sine wave output.
• Dual outputs for smart load management.
• Built-in WiFi and BMS communication port.

Model Options

VM 4000 – PV 5600
Rated power: 4,000 VA / 4,000 W
Battery voltage: 24 VDC
Maximum PV array power: 5,600 W
Surge power: 8,000 VA
Net weight: 9 kg

VM 6000 – PV 8000
Rated power: 6,000 VA / 6,000 W
Battery voltage: 48 VDC
Maximum PV array power: 8,000 W
Surge power: 12,000 VA
Net weight: 10 kg

Common Specifications

Nominal AC input voltage: 230 VAC
AC output regulation in battery mode: 230 VAC ±10%
Peak efficiency: 93%
Transfer time: 10 ms for personal computers; 20 ms for home appliances
Dimensions (D × W × H): 115 × 300 × 435 mm
Communication interfaces: USB, RS232, RS485, WiFi, and dry contact
Operating temperature: -10°C to 50°C
